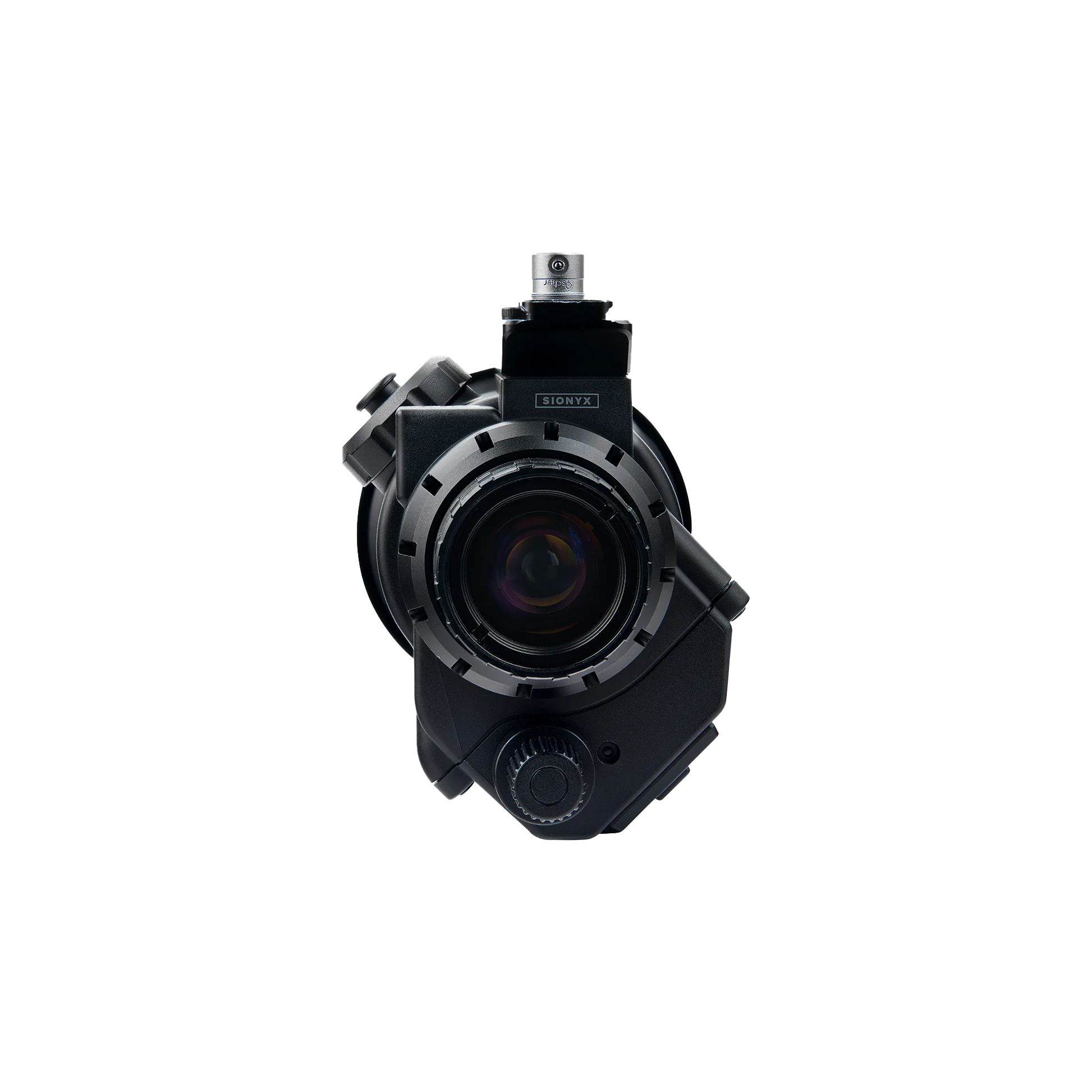

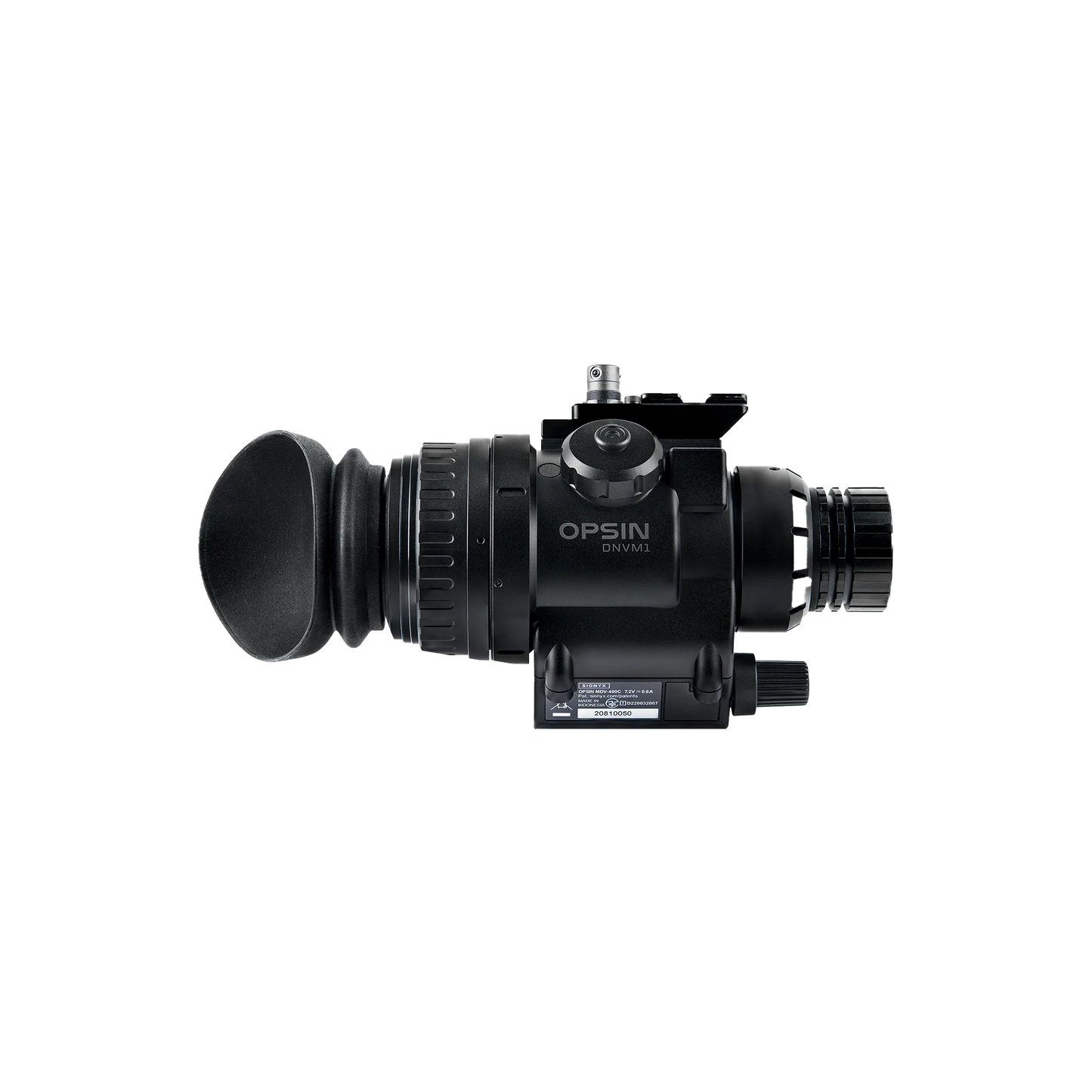

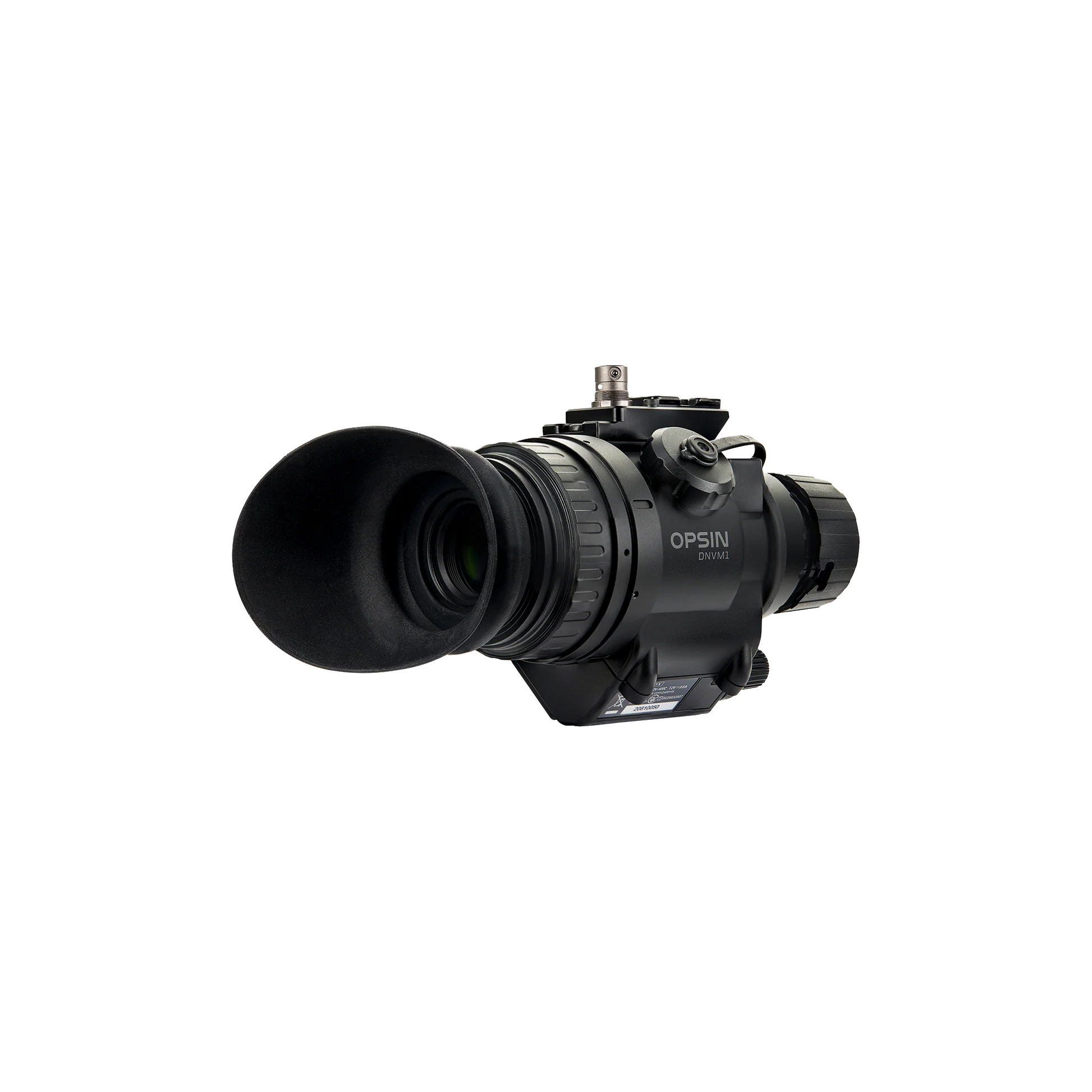

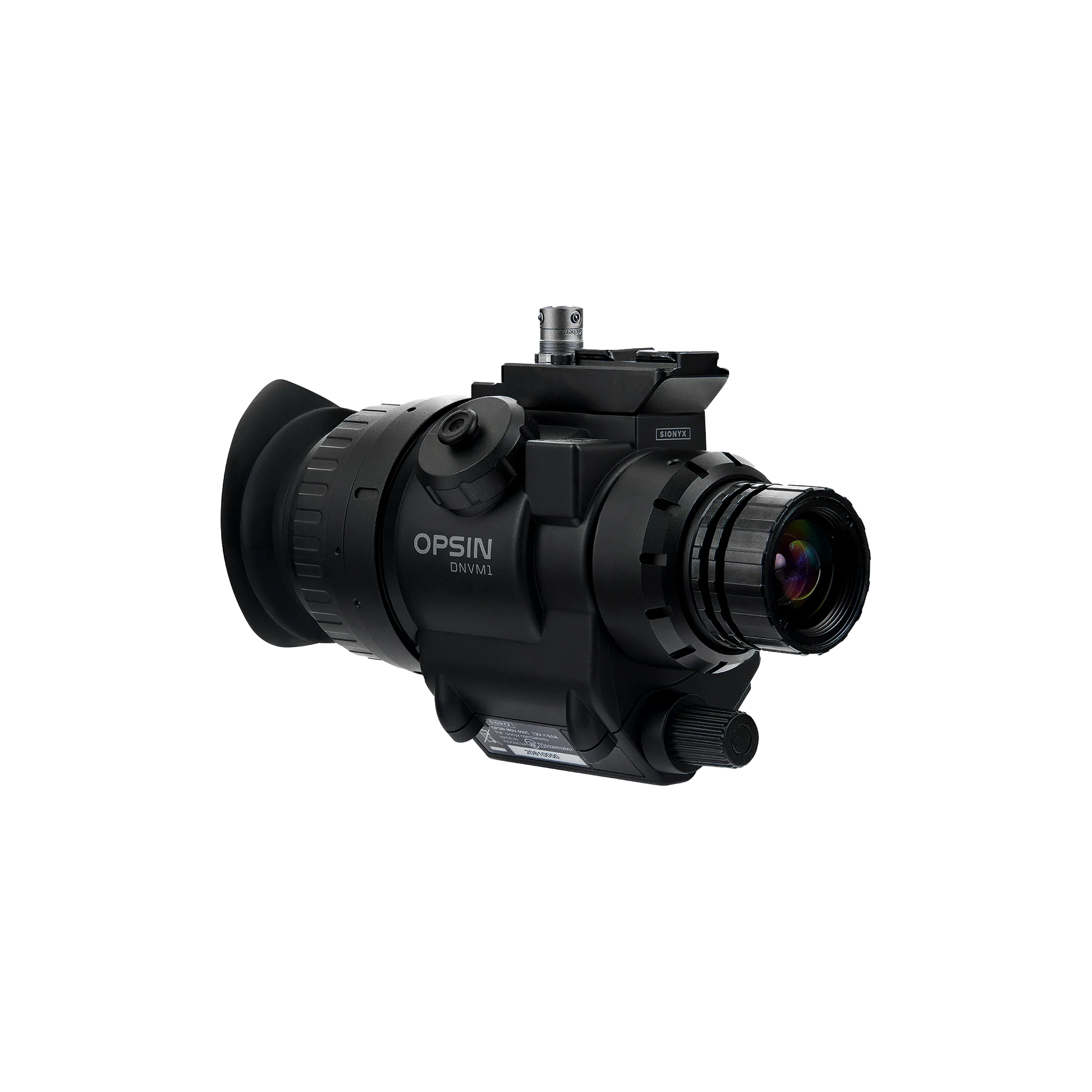

SIONYX OPSIN Monocular (Digital Night Vision)
SIONYX OPSIN Monocular (Digital Night Vision)
Couldn't load pickup availability
Your tactical toolbox just stepped into the future.
Inspired by the U.S. DoD’s desire to integrate digital night vision into surveillance and support low-light operations, OPSIN is changing the night vision game. It brings next-level innovation to the traditional night vision market with our proprietary XQE-1350 Black Silicon CMOS sensor. OPSIN’s technology provides unmatched color low-light capability plus immersive digital display, recording, and navigation features that make operations more precise, efficient, and informative. Heightened visual detail and data collection inform tactical decisions and refine intelligence – advanced capabilities you won’t find with traditional night vision. Plus, with a jurisdiction and classification of EAR99, OPSIN is available globally with minimal export restrictions.

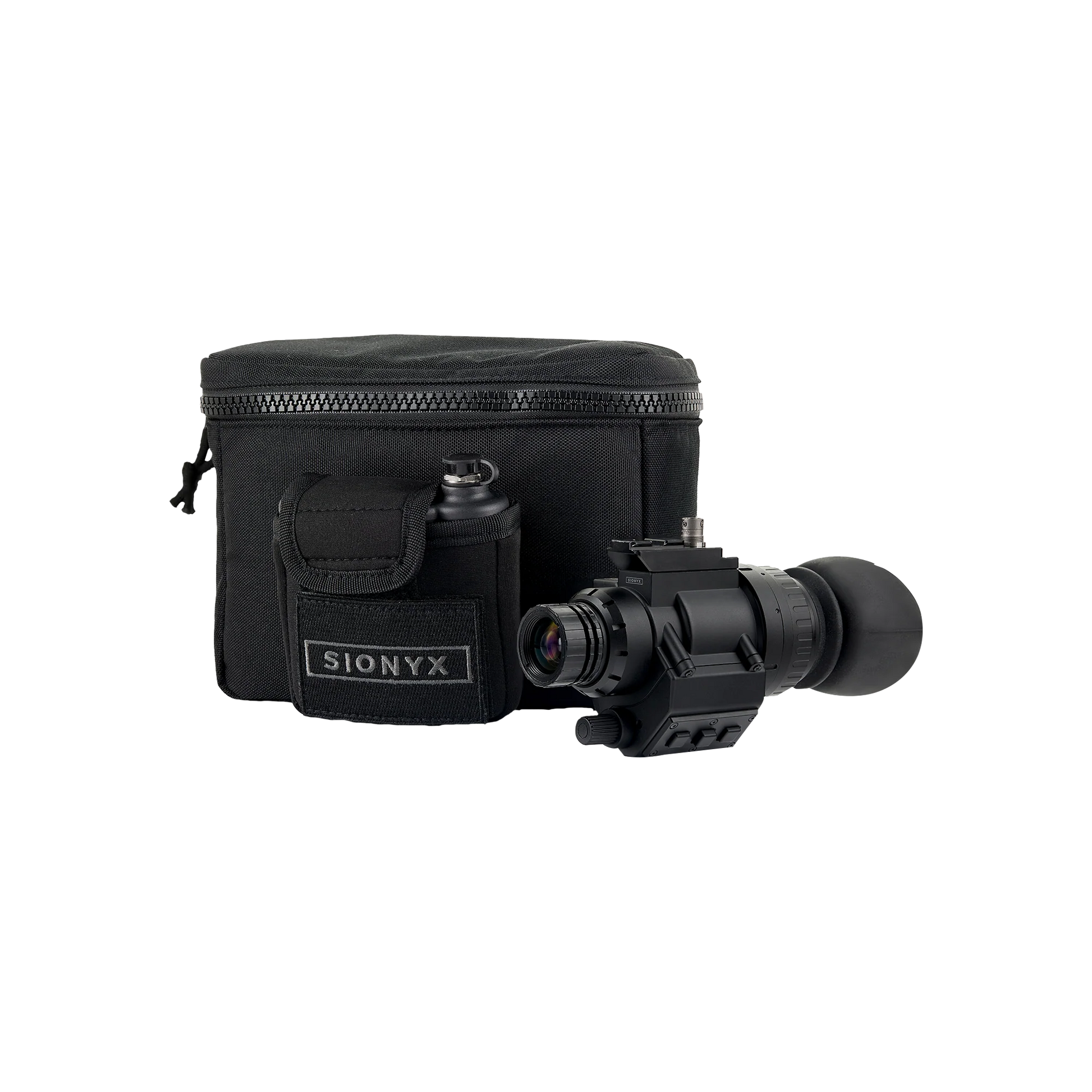

WHAT’S IN THE BOX
- OPSIN Camera
- Eye Cup
- Swing Arm
- Battery Pack (>16 HRS Operation Time)
- Canvas Pouch
- Micro SD Card
- Lens Cap
- Charger
- User Manual
FEATURES
- <1 millilux moonless starlight night vision
- Extra-large 1920x1080 HD micro-OLED display with a custom eyepiece for 25mm eye relief
- 44 degree field of view for maximum situational awareness
- Photo, video, and audio recording
- Manual focus of objective lens and diopter
- Onboard digital magnetic compass and GPS to document and geo-tag location
- Up to 256GB on-board storage
- Battery provides up to fourteen hours of operation with a full charge
- Flexible helmet mounting options with a standard dovetail interface
- Adjustable and reversible swing arm with quick-release button
- Exceeds MIL-STD-810G drop test
- IP67 rated: water-resistant at 1m/30min submersion, vibration/shock, salt/sand.
CAMERA
- Sensor Type: XQE-1351 (COLOR)
- Resolution: 1280 X 1024
- Frame Rate: 30 I 60 I 90 HZ
- Horizontal FOV: 45°
- Visible Spectrum: 400-1200NM
- Focus Range: 0.2M TO INFINITY
- Lens: 15MM F/1.3
SYSTEM
- Latency: < 1 FRAME
- Display: AMOLED 1920 X 1080
- Diopter Adjustment: -4 TO +4
- Eye Relief: 25MM
- Exit Pupil: 7.5MM
- Location System: BUILT-IN GPS
- Orientation System: DIGITAL MAGNETIC COMPASS
- Wireless Communications: WIFI + BLUETOOTH
- Audio: BUILT-IN MICROPHONE
- Power In: 7.2VDC
- Storage Media: MICRO SD CARD
- Storage Capacity: UP TO 256GB
ENVIRONMENTAL
- Ingress Protection: IP67
- Shock & Vibration: 2M
- Operating Temperature: -20°C TO +55°C
- Storage Temperature: -40°C TO +70°C
CAMERA - PHYSICAL
- Wright: 301 G [10.6 OZ]
- Dimensions: 120 X 80 X 58 MM [ 4.7 X 3.1 X 2.3 IN]
- Mounting Options: MINI RAIL
- Material: GLASS REINFORCED POLYCARBONATE
BATTERY PACK
- Battery Cells: 4 X 18650 LI-ION
- Voltage: 7.2VDC
- Capacity: 5960MAH | 42.9WH
- Dimensions: 97 X 92 X 49 MM [3.8 X 3.6 X 1.9 IN]
- Weight: 298G [10.5OZ]
- Operation Time (All Systems Features ON): UP TO 10 HRS
- Operation Time (Viewing Only): UP TO 14 HRS
RANGE PERFORMANCE
- Clear Weather at 1/4 Moon
- Detect Man-Sized Target: 150 M
